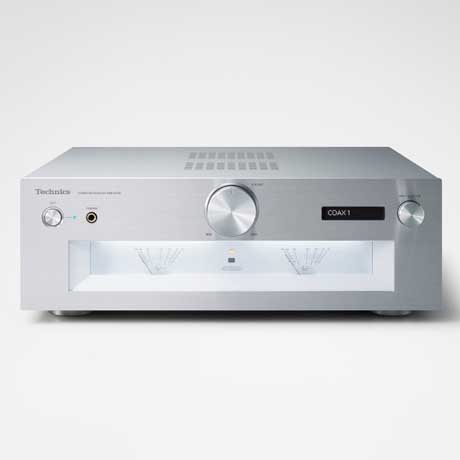

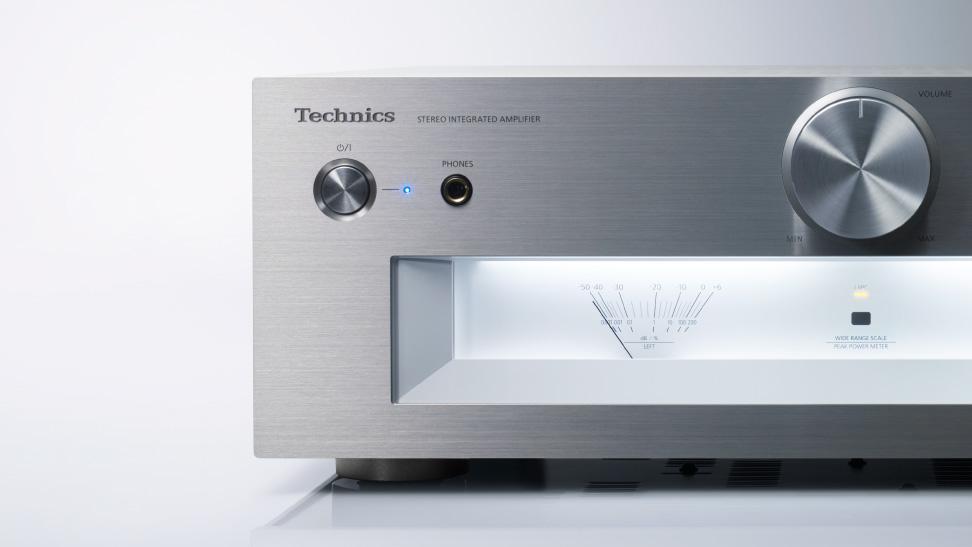

SU-G700
Stereo Integrated Amplifier
Technics' Definitive Integrated Amplifier Fully Conveys the Energy of the Music
Reference-class High-quality Audio Technology
Inheriting the reference-class audio technology concept, the JENO Engine transmits and processes audio signals in full digital and with minimal jitter from the input stage to the power stage. Speaker load adaptive phase calibration (LAPC) ensures ideal gain and phase characteristics for any type of speaker. The newly developed low-distortion switching power supply realises accurate power supply by suppressing switching frequency fluctuations caused by load shifting.
Three-section Configuration
In integrated amplifiers there are a variety of circuits, including circuits that handle the micro-signals of inputs and those that handle a large current, such as output circuits and power-supply circuits. The SU-G700 uses a three-section construction with partitions installed between the circuit blocks according to the signal level handled. This eliminates interference between circuit blocks, thus achieving clear sound quality. Also, the chassis rigidity due to this construction suppresses the vibration of electrical parts, thereby suppressing deterioration in sound quality.
Class AA Headphone Amplifier
The SU-G700 uses a Class AA headphone amplifier with separate amplifier circuits for voltage amplification and current amplification of the audio signal. The voltage is amplified by a high-grade operational amplifier, the current is amplified by an operational amplifier with high current-supply capability, and the high-grade PWM signal output from the JENO Engine is converted to analogue with high precision, thus enabling headphones to be ideally driven. This makes it possible to reproduce music with low distortion and a wide frequency range no matter what the load impedance of the headphones is.
Battery Driven Clock Generator
The best power supply for delicate circuitry such as the clock generator in new amplifiers is one entirely isolated from any noise or fluctuations in the mains supply. Technics has extensive experience in power supply isolation using batteries. This technology creates ultra-low-noise pre-amplifier stages.
Low-noise PHONO Input
The PHONO input achieves low noise by using a differential parallel connection configuration of a first-stage, low-noise FET. In addition, four-level gain adjustment enables selection of the best gain according to the cartridge output. This enables optimal playback of high-grade analogue recorded sound sources tailored to the user's environment.
Digital Noise Isolation Architecture
For the PC input terminals, the amplifier uses power conditioners with non-magnetic carbon film resistors that provide strong protection against magnetic distortion, and high-quality ruby mica capacitors featuring excellent characteristics such as low dielectric loss, high voltage resistance, and temperature stability. Sound reproduction with greater purity was pursued by blocking the incursion of outside noise.
High-rigidity Aluminium Cabinet
The High-rigidity Metal Double Chassis features a steel-plate inner chassis and a steel-plate outer chassis to reduce vibration and noise that degrade the purity of sound. To support heavy parts and components and lower the centre of gravity for improved stability, the inner chassis is made of a 1.2-mm-thick plate. The bottom surface of the cabinet is a 2-mm-thick steel plate. This improves the vibration damping performance and achieves a low centre of gravity. The front panel is made of a 7-mm thick aluminium plate to resist the effects of electromagnetic noise.
JENO Engine
In order to faithfully transmit the massive amount of audio data sent to the speakers without loss, the SU-G700 power amp section uses full digital amplification employing the JENO Engine, based on the design concept of reference systems. In order to solve the issue of sound quality degradation due to jitter, which poses problems for conventional digital amplifiers, the SU-G700 has an original jitter reduction circuit that eliminates jitter over the entire audible frequency range.
LAPC
Speaker impedance changes with each frequency and a power amplifier is required to drive speakers without being affected by the speaker’s characteristics. However, conventional digital amplifiers are connected to speakers through a low-pass filter at the output stage, so they are even more strongly affected by the speaker impedance characteristics.
High-speed Silent Hybrid Power Supply
With a conventional switch mode power supply, the switching frequency changes in response to the load fluctuation in order to control the switching ON time for stabilising the output voltage. This fluctuation component in the switching frequency has a negative impact on sound quality. The newly developed power supply reduces the noise component harmful to sound quality by fixing the switching frequency. In addition, the latter stage in the switching power supply is provided with a linear regulator to stabilise the output voltage. The linear regulator uses custom, high-definition electrolytic capacitors.
