SB-R1
Speaker System
Achieves a superlative level of sound reproduction, building on our linear-phase, point-sound-source concept.
Point-Sound-Source Speaker System
For soundstage focus and precise imaging, the wave-fronts from a speaker’s drive units should ideally be aligned, arriving simultaneously at the listener’s ears regardless of the listening position. In other words, the speaker system should appear to have only one point sound source. The newly developed flat coaxial two-way speaker unit, combining midrange and treble drivers, works with a virtual coaxial woofer to realize a point sound source, providing smooth directional characteristics over the entire frequency range, without peaks or dips.

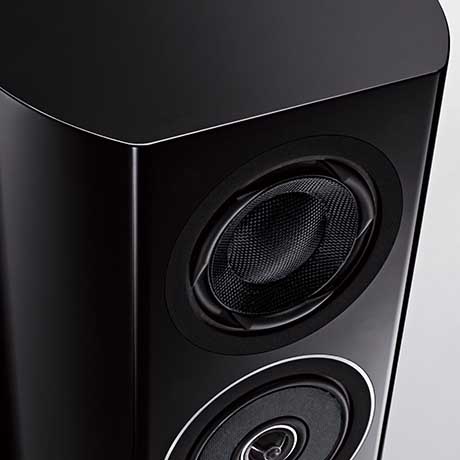

Phase Precision Driver
(Flat Coaxial 2-Way Speaker Unit)
For faithful reproduction of mid-range and high-frequency sound, Technics has developed an all-new flat coaxial two-way drive. The flat mid-range diaphragm is of a sandwich construction, using lightweight, high-rigidity carbon cloth skins and aluminium honeycomb core.

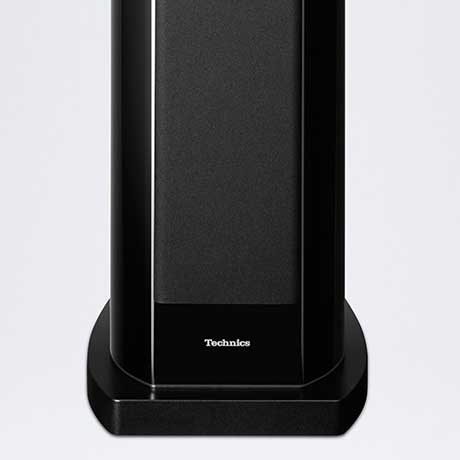

High Rigidity Entasis Form Cabinet
A 50 mm thick baffle used in the cabinet supports the speaker units rigidly and suppresses undesirable resonances, while side panels comprising eight layers of MDF give the cabinet a curved form, suppressing unwanted vibration and reducing internal and external diffraction and reflection.
Low Distortion 16 cm Long Stroke Woofer
Technics has developed a long-throw woofer capable of reproducing super-low frequencies with dramatically reduced distortion, giving powerful, dynamic and responsive bass. A push-pull edge (Symmetrical Surround Technology, SST) design cancels secondary harmonic distortion in the low-frequency range.
High-Quality Network Circuit
The High-quality Network Circuit was created as a result of extensive designing and listening, in order to maximize the performance of each speaker unit and achieve a balanced sound. To prevent interference between the drive units and minimize the effect of vibration, separate network boards for woofer, mid-range and tweeter are optimally arranged inside the cabinet.
