SB-G90
Speaker System
Unwanted vibration of the speaker units and enclosure has been thoroughly eliminated. The floor-standing speaker achieves clarity in sound imaging and fullness in spatial expression.

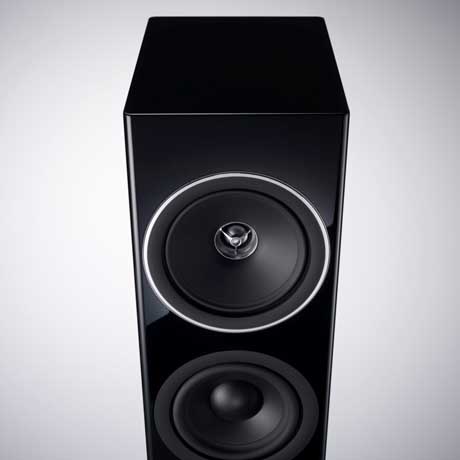

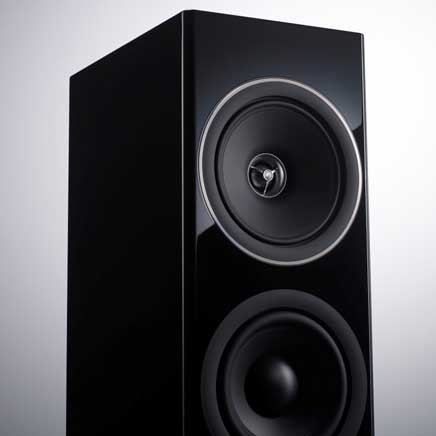

Phase Precision Driver
(Coaxial 2-way Speaker Unit)
A lightweight, high-rigidity anodized aluminium dome diaphragm is used for the tweeter diaphragm. The driver reproduces a wide frequency range up to 100 kHz by using a new dome shape optimized through simulation, as well as achieving greater uniformity in phase characteristics by using a phase plug. In addition, the SB-G90 uses high-linearity-drive underhung voice coils, the magnetic gaps of which have had magnetic fluid injected to suppress temperature rise, thereby ensuring superior power linearity. These features provide reproduction of the high-frequency range with superb detail and beauty.
BDMA
(Balanced Driver Mounting Architecture)
With the conventional method of mounting a speaker unit to a baffle, the centre of gravity of the speaker unit was located away from the support points, and so the force acting on the voice coil when driving the speaker produced vibration of the entire speaker unit. This produced distortion in the sound waves generated from the diaphragm, resulting in deterioration of sound quality. In addition, mounting the speaker unit to the baffle is a configuration that easily transmits vibration of the speaker unit itself to the baffle, and so unnecessary vibration sound was produced from the baffle, again with deterioration of the sound quality.
High-rigidity Cabinet
Cabinet strength is ensured inside the cabinet by using a cross construction with sub-baffles to which the speaker units are mounted and horizontal reinforcing panels. A separate sub-baffle is used for each speaker unit, which minimises sympathetic vibration between speaker units. In addition, differentiated use of two kinds of absorbent acoustic materials with optimal placement inside the cabinet suppresses internal standing waves and reduces incidental sound due to reflection in the cabinet.
Point Sound Source Speaker System
One ideal in reproducing sound with full spatial expression is to ensure that the wave-fronts emitted from the speaker units are aligned at any listening position, i.e., providing a point sound source. While inheriting the linear phase concept, the SB-G90 has newly developed two-way coaxial cone units (including mid-range and tweeter) targeting high-speed reproduction with enhanced high sensitivity.
High-quality Network Circuit
The high-precision network circuit was created through repeated listening and redesign, in order to maximize the performance of each speaker unit and achieve well-balanced sound. High-quality parts, such as a polypropylene film capacitor, an air-core choke coil, and OFC wire used for connection were carefully selected by examining their properties.
16cm Low-distortion Long-stroke Woofer
The woofers have features such as double magnets producing robust drive power, and magnetic circuits with high-linearity-drive overhung voice coils, copper rings, and aluminium short rings. This newly developed long-stroke unit achieves low-frequency reproduction with wide dynamic range as well as excellent low distortion and response even for a large excursion.
